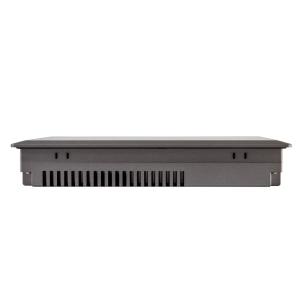

10.1" Industrial HMI Touch Panel PC for CNC machine control system fleet management
Features:
1) Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU
2) Onboard DDR3 4GB/DDR4 8GB Memory / Optional SODIMM SKU
3) LCD+HDMI Output, Support Dual view/Simultaneous display
4) Fanless Operation
5) IP65 Front Bezel
6) Wide DC Support 9 ~ 36V
SPECIFICATION of 10.1" Industrial HMI Touch Panel PC for CNC machine control system fleet management
ndustrial HMI Touch Panel PC | |||||||||||||||||||||||||||||||||||||||
Model Name | ITD101PPCT5B-xxxx | ||||||||||||||||||||||||||||||||||||||
IP Rating | IP65 Front Panel | ||||||||||||||||||||||||||||||||||||||
PC Systems Options | |||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||
LCD Panel | |||||||||||||||||||||||||||||||||||||||
Screen Diagonal (Inch) | 10.1” | ||||||||||||||||||||||||||||||||||||||
Display Active Screen Size (cm) | 216.96(H)×135.6(V) | ||||||||||||||||||||||||||||||||||||||
Aspect Ratio | 16:10 | ||||||||||||||||||||||||||||||||||||||
Physical Resolution | 1280×800 | ||||||||||||||||||||||||||||||||||||||
Maximum Resolution Supported | 1920×1200 | ||||||||||||||||||||||||||||||||||||||
Colors | 262K | ||||||||||||||||||||||||||||||||||||||
Brightness (cd/m2) | 350 | ||||||||||||||||||||||||||||||||||||||
Contrast Ratio | 800:1 | ||||||||||||||||||||||||||||||||||||||
View Angels | 85/85/85/85 | ||||||||||||||||||||||||||||||||||||||
Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | ||||||||||||||||||||||||||||||||||||||
Touch Panel | |||||||||||||||||||||||||||||||||||||||
Touch Options | Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel | ||||||||||||||||||||||||||||||||||||||
Touch Drivers | Windows 7/8/10, Linux, Android, Mac | ||||||||||||||||||||||||||||||||||||||
Operation | |||||||||||||||||||||||||||||||||||||||
Operating Temperature Range | -20~60°C | ||||||||||||||||||||||||||||||||||||||
Humidity Range (RH) | 10-90% | ||||||||||||||||||||||||||||||||||||||
24/7/365 Use | Supported | ||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||
Power Indicator | Green LED | ||||||||||||||||||||||||||||||||||||||
Power Input | DC 9-36V with 4PIN M12 Connector | ||||||||||||||||||||||||||||||||||||||
Power Consumption | 20W |
![]() |
